Axels
A trailer axle is the central shaft that connects the wheels of a trailer, allowing them to rotate. It is a critical part of the suspension system, supporting the load, distributing weight, and ensuring stability while in motion.

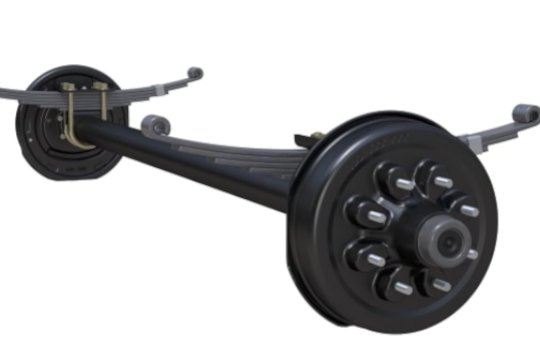

AI generated photo, may not match items being sold.
| Description | |||
|---|---|---|---|
| 61" HF | 2000 Lb. | 1-3/4" diameter x 3/16" nominal wall round tubing x 61" long from hub face to hub face. Straight axle, type BT9 spindle with an inner and outer journal dimension of 1-1/16". Axle seats come loose with axle. Does not include hubs or drums. | |
| 71" HF | 2000 Lb. | 1-3/4" diameter x 3/16" nominal wall round tubing x 71" long from hub face to hub face. Straight axle, type BT9 spindle with an inner and outer journal dimension of 1-1/16". Axle seats come loose with axle. Does not include hubs or drums. | |
| 73" HF | 3500 Lb. | 2-3/8" diameter x 3/16" nominal wall round tubing x 73" long from hub face to hub face. Straight axle, type 84 spindle with an inner journal dimension of 1-3/8", outer journal dimension of 1-1/16". Axle seats come loose with axle. Does not include hubs or drums. | |
| 85" HF | 3500 Lb. | 2-3/8" diameter x 3/16" nominal wall round tubing x 85" long from hub face to hub face.Straight axle, type 84 with an inner journal dimension of 1-3/8", outer journal dimension of 1-1/16". Axle seats come loose with axle. Does not include hubs or drums. | |
| 89" HF | 3500 Lb. | 2-3/8" diameter x 3/16" nominal wall round tubing x 89" long from hub face to hub face.Straight axle, type 84 with an inner journal dimension of 1-3/8", outer journal dimension of 1-1/16". Axle seats come loose with axle. Does not include hubs or drums. | |
| 95" HF | 3500 Lb. | 2-3/8" diameter x 3/16" nominal wall round tubing x 95" long from hub face to hub face.Straight axle, type 84 with an inner journal dimension of 1-3/8", outer journal dimension of 1-1/16". Axle seats come loose with axle. Does not include hubs or drums. | |
| 95" HF x 4" Drop | 3500 Lb. | 4" Drop Axle with 2-3/8" diameter x 3/16" nominal wall round tubing x 95" long from hub face to hub face. Type 84 with an inner journal dimension of 1-3/8", outer journal dimension of 1-1/16". Axle seats come loose with axle. Does not include hubs or drums. | |
| 87" HF | 5200 Lb. | 3" diameter x 3/16" wall round tubing x 87" long from hub face to hub face. Straight axle, type 42 with an inner journal dimension of 1-3/4", outer journal dimension of 1-1/4". Axle seats come loose with axle. Does not include hubs or drums. | |
| 95" HF | 5200 Lb. | 3" diameter x 3/16" wall round tubing x 95" long from hub face to hub face. Straight axle, type 42 with an inner journal dimension of 1-3/4", outer journal dimension of 1-1/4". Axle seats come loose with axle. Does not include hubs or drums. | |
| 80" HF | 7000 Lb. | 3" diameter x 1/4" wall round tubing x 80" long from hub face to hub face. Straight axle, type 42 with an inner journal dimension of 1-3/4", outer journal dimension of 1-1/4". Axle seats come loose with axle. Does not include hubs or drums. | |
| 95" HF | 7000 Lb. | 3" diameter x 1/4" wall round tubing x 95" long from hub face to hub face. Straight axle, type 42 with an inner journal dimension of 1-3/4", outer journal dimension of 1-1/4". Axle seats come loose with axle. Does not include hubs or drums. | |
| BT9 Spindle | 2000 Lb. | Single loose BT9 spindle for 2000# axels. Includes spindle nut, washer, and cotter pin. | |
| 84 Spindle | 3500 Lb. | Single loose 84 spindle for 3500# axels. Includes spindle nut, washer, and cotter pin. | |
| 42 Spindle | 5200/7000 Lb. | Single loose 42 spindle for 5200#/7000# axles. Includes spindle nut, washer, and cotter pin. |
